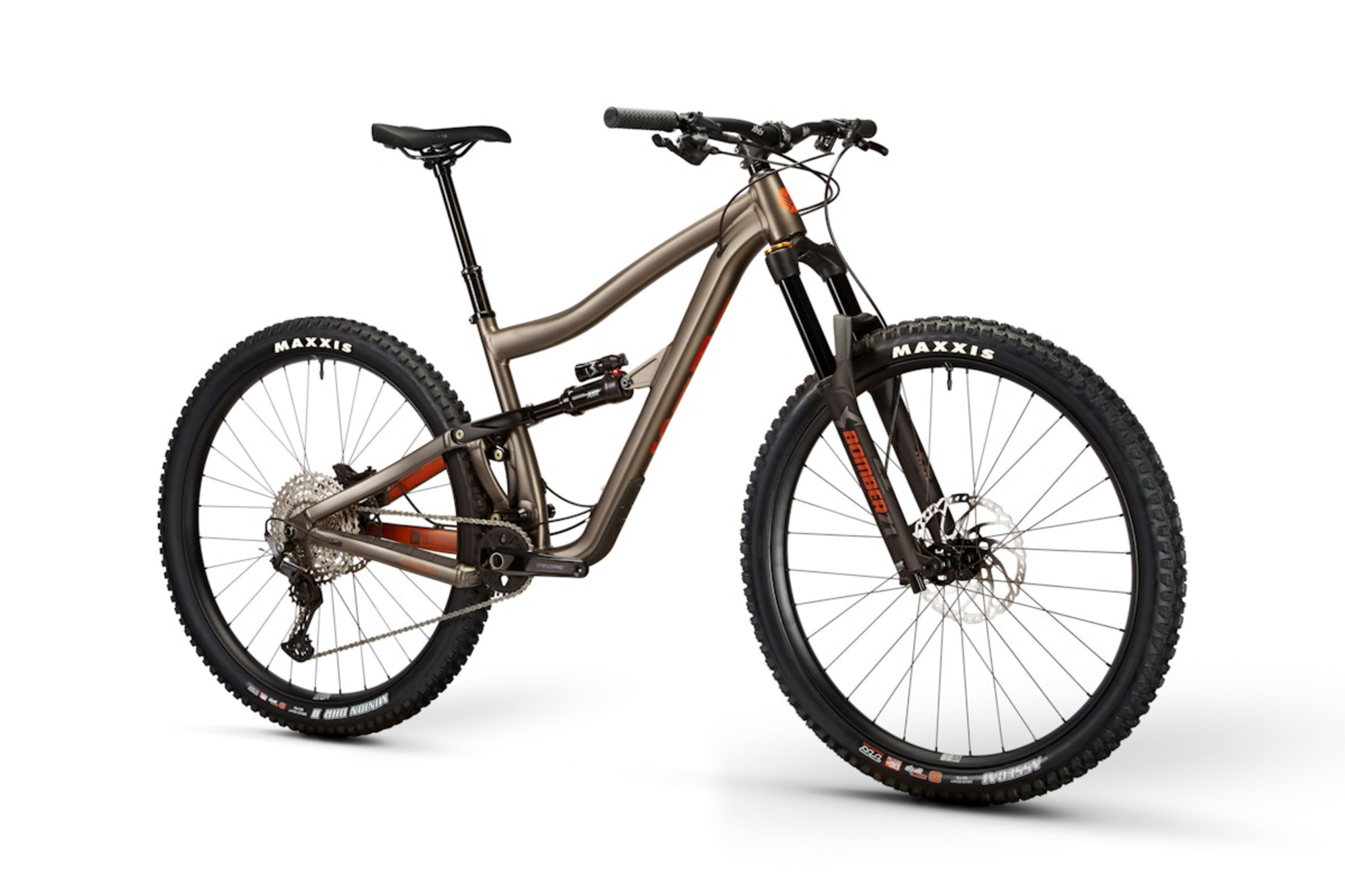

Ibis Ripmo AF SLX UDH
$2,774.99
$3,699.99
Details
The Ripmo AF (Aluminum Frame) brings the award-winning performance of the carbon Ripmo to a wider, rowdier audience. It’s everything we love from the carbon Ripmo, plus a few tweaks.
| NOMINAL SIZE | SM | MD | LG | XL |
|---|---|---|---|---|
| Seat Tube Length | 368 | 380 | 432 | 483 |
| Top Tube Length | 573 | 603 | 632 | 655 |
| Head Tube Length (4mm stack of lower cup not included) | 90 | 100 | 110 | 120 |
| Chainstay Length | 435 | 435 | 435 | 435 |
| Seat Tube Angle | 77° | 76° | 76° | 76° |
| Head Tube Angle | 64.9° | 64.9° | 64.9° | 64.9° |
| Wheelbase | 1185 | 1216 | 1237 | 1262 |
| BB Height (with 2.6 Schwalbe Nobby Nicks) | 341 | 341 | 341 | 341 |
| Stack | 613 | 620 | 629 | 642 |
| Reach | 431 | 458 | 475 | 495 |
| Standover | 705 | 750 | 750 | 760 |
| Trail | 125 | 125 | 125 | 125 |
| BB Drop | 30 | 30 | 30 | 30 |
| Saddle height for seat tube angle | 650 | 700 | 750 | 810 |
| S | 5'0"–5' 4" |
|---|---|
| M | 5'3"–5' 8" |
| L | 5'7"-6'1" |
| XL | 6'–6'5" |
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | Marzocchi Bomber Z1 Coil, 160mm, 44mm offset, 29”, 110mmx15mm |
| Hubs | Ibis Hubs |
| Rims | Blackbird Send Alloy (Send I front, Send II rear), 29” |
| Stem | Ibis, 31.8mm (S/M: 40mm, L/XL: 50mm) |
| Chain | Shimano SLX M7100 |
| Frame | Ripmo AF UDH |
| Tires | Front: Maxxis Assegai 29” x 2.4” Rear: Maxxis DHR II 29” x 2.4” |
| Brakes | Shimano SLX M7120, 4-Piston |
| Rotors | Shimano SM-RT66, 203mm/180mm |
| Saddle | WTB Volt, 142mm |
| Spokes | Sapim D-light J-Bend |
| Wheels | Blackbird Send Alloy 29” |
| Headset | Cane Creek 40: ZS44/ZS56 |
| Crankset | Shimano SLX M7120, 24mm spindle(175mm) |
| Seatpost | Bike Yoke Revive Dropper (S: 125mm, M: 160mm, L: 185mm, XL: 213mm) |
| Shifters | Shimano SLX M7120 |
| Chainrings | Shimano SLX M7120 30T |
| Handlebars | Ibis Aluminum, 780mm, 31.8mm |
| Rear Shock | Marzocchi Bomber Air, 210mm x 55mm |
| Tape/Grips | Lizard Skin Charger |
| Brake Levers | Shimano SLX M7120 |
| Bottom Bracket | Shimano SLX BB52 |
| Rear Derailleur | Shimano SLX M7120, Shadow Plus |
| Cassette/Freewheel | Shimano SLX, 10-51T |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Espresso Black / Large / 29-inch | 810081721486 | RMA3BCSSXAL35 | 24I22829508G |
| Cinnabon Bronze / X-Large / 29-inch | 810081721578 | RMA4BZSSXAL35 | 24I24121929L |
